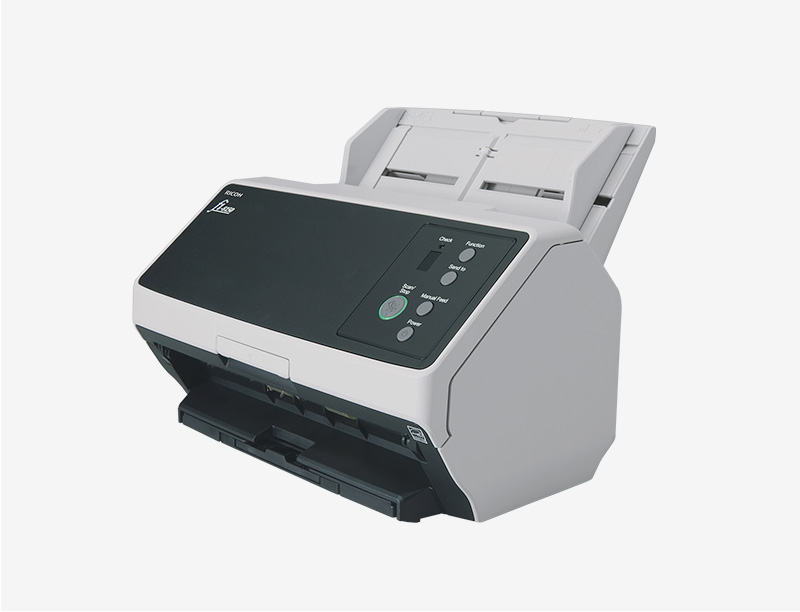

Description of fi-8150 scanner
Scanner Type
ADF (Automatic Document Feeder) / Manual Feed, Duplex
Scanning Speed (A4 Portrait)
Simplex 50 ppm (200/300 dpi)
Scanning Speed(Color/Grayscale/Monochrome)
Duplex 100 ipm (200/300 dpi)
Image Sensor Type
CIS x 2 (front x 1, back x 1)
Light Source
RGB LED x 2 (front x 1, back x 1)
Optical Resolution
600 dpi
Output Resolution(Color / Grayscale / Monochrome)
50 to 600 dpi (adjustable by 1 dpi increments), 1,200 dpi (driver)
Output Format
Color: 24-bit, Grayscale: 8-bit, Monochrome: 1-bit
Background Colors
White / Black (selectable)
Document Size
Maximum
215.9 x 355.6 mm (8.5 x 14 in.)
Minimum
48 x 50 mm (1.9 x 2 in.)
Long Page Scanning
6,096 mm (240 in.)
Paper Weight (Thickness)
Paper
20 to 465 g/m² (5.3 to 124 lb)
Booklet
Less than 7 mm (0.276 in.)
Plastic Card
1.4 mm (0.055 in.) or less
ADF Capacity
100 sheets (A4 80 g/m² or Letter 20 lb)
Expected Daily Volume
8,000 sheets
Multifeed Detection
Overlap detection (Ultrasonic sensor), Length detection
Paper Protection
Image monitoring
Interface
USB
USB 3.2 Gen1x1 / USB 2.0 / USB 1.1
Ethernet
10BASE-T, 100BASE-TX, 1000BASE-T
Power Requirements
AC 100V – 240V 50/60 Hz
Power Consumption
Operating Mode
21 W or less / 17 W (Eco mode)
Sleep Mode
LAN: 2.0 W or less
USB: 1.4 W or less
Auto Standby (Off) Mode
0.2 W or less
Operating Environment
Temperature
5 to 35 °C (41 to 95 °F)
Relative Humidity
15 to 80% (Non-condensing)
Environmental Compliance
ENERGY STAR, RoHS
Dimensions (W x D x H)
300 x 170 x 163 mm (11.8 x 6.7 x 6.4 in.)
Weight
4 kg (8.8 lb)
Supported Operating System
Windows 11, Windows 10, Windows Server 2022, Windows Server 2019, Windows Server 2016, macOS, Linux (Ubuntu)
Software / Drivers
PaperStream IP Driver (TWAIN/TWAIN x64/ISIS™), WIA Driver, Image Scanner Driver for macOS (ICA), Image Scanner Driver for Linux (SANE), PaperStream Capture, PaperStream ClickScan, PaperStream NX Manager, Software Operation Panel, Error Recovery Guide, ABBYY FineReader for ScanSnap™, Scanner Central Admin Server
Image Processing Functions
Multi image output, Automatic color detection, Blank page detection, Dynamic threshold (iDTC), Advanced DTC, SDTC, Error diffusion, Dither, De-Screen, Emphasis, Dropout color (None/Red/Green/Blue/White/Saturation/Custom), sRGB output, Hole punch removal, Index tab cropping, Split image, De-Skew, Edge filler, Vertical streaks reduction, Background pattern removal, Cropping, Static threshold
Included Items
ADF paper chute, AC cable, AC adapter, USB cable, Setup DVD-ROM
